Straw Charcoal Mahcine

Environmentally friendly drum continuous carbonation machine, the use of carbonized flue gas purification into combustible gas generated in combustion itself, recycling to use, it can 24 hours of continuous production, has zero pollution, zero-emission, save labor, high capacity, energy-saving consumption, the advantages of a high degree of automation,  advanced technology

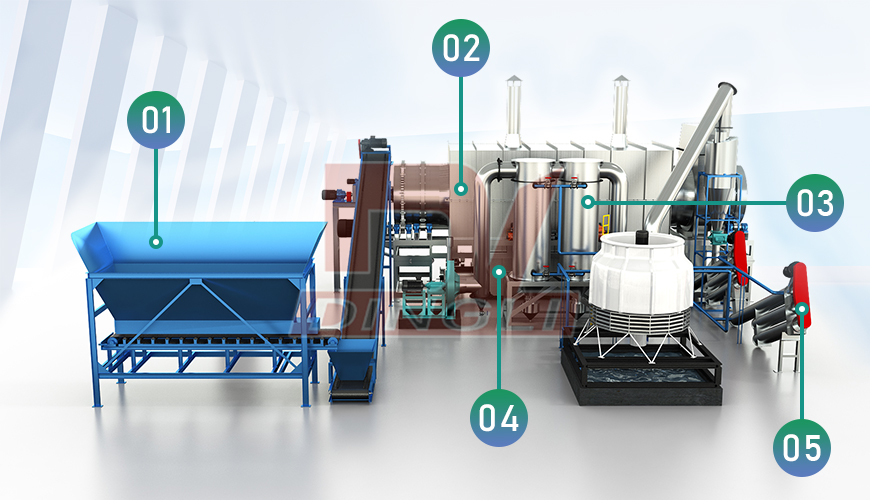

The Structure Composition

Dingli smokeless continuous carbonization furnace is composed of conveyor, high temperature furnace, dust removal, decoking, purification, gas cabinet, power distribution cabinet and other equipment. It is a newly developed continuous carbonization equipment integrating high efficiency, environmental protection and intelligence.

The whole production line can also be equipped with dryers, charcoal powder briquettes or ball briquetting machines, and briquette dryers. The generated carbon blocks can be packaged and sold directly.

Process Flow Chart

Parameters

Model Diameter(mm) The drum length(m) Carbon capacity(kg/h) Drum speed(rpm) Dimension(m)
DLTJ1010 1000 10 100-200 1.5-2.5 10.0*1.7*2.8
DLTJ1210 1200 10 200-300 1.5-2.5 10.0*2.0*3.0
DLTJ1410 1400 10 400-500 1.5-2.5 10.0*2.2*3.2
DLTJ1612 1600 12 600-800 2.0-3.0 10.0*2.4*3.5
DLTJ1912 1900 12 900-1100 2.0-3.0 12.0*2.8*3.8
DLTJ2212 2200 12 1200-1500 2.0-3.0 12.0*3.2*4.2
DLTJ2512 2500 12 1600-2000 2.0-3.0 12.0*3.5*4.5
DLTJ3012 3000 12 2200-2600 2.0-3.0 12.0*4.0*5.0
DLTJ3612 3600 12 3000-3800 2.0-3.0 12.0*4.6*5.6
Straw Charcoal Mahcine
Straw Charcoal Mahcine
Straw Charcoal Mahcine

Project Site of Our Machine


In the site, there is a complete biochar/charcoal making system, including feeding system, crushing system, drying system, wood carbonization System, Discharging System, Final charcoal powder.

Customize machine solution according to your actual needs.

Applications

Carbonization of biomass materials by charcoal machine, carbon content is greatly improved, and the combustion effect is good. After cooling the carbon powder, it can be equipped with a molding device to process carbon rods, carbon blocks, etc., and can also carry out deep processing of activated carbon.

Suitable Materials

Carbonization furnace is suitable for carbonization of various forestry and agricultural biomass. Such as sawdust, wood chips, bagasse, coffee grounds, bamboo, coconut shell, cherry shell, date, walnut shell, apricot shell, peanut shell, rice husk, cotton stalk, straw, etc.(Note: Some raw materials need to be crushed.)

1. Strong material adaptability. Biomass with a moisture content of less than 20% and a particle size of less than 30 mm can be carbonized;

2. The quality of carbon products is good, and the carbonization rate is high. Carbon products can be used not only as fuel carbon, but also as raw materials for agricultural carbon, metallurgical carbon and activated carbon;

3. Strong carbonization depth control ability. The residual volatile matter of charcoal products is 10-25%, which can be controlled on demand;

4. The equipment is safe and environmentally friendly, stable in operation and long in service life. Choose a large number of new materials and new processes, adopt patented technology design, precision production, after a lot of practical tests, every detail is perfect, to ensure the quality of each set of equipment.
