Waste Materials High Temperature Pyrolysis Plant

Waste cans are recycled and reused. Waste cans are thin in texture and large in surface area. They are severely oxidized and burned during the smelting process, and the metal recovery rate is low. There is a paint layer on the surface, which has a certain impact on the quality of aluminum alloy. Direct melting and easy to produce flue gas pollution. After being collected by waste recyclers, waste stations, and waste companies, the shape of waste cans is destroyed. Some have been packed into blocks, which are difficult to separate and pre-treatment is difficult.

How to fully recycle cans, the key process is how to remove the paint. The continuous carbonization furnace for cans provided by our company achieves good results by removing paint through the carbonization process.

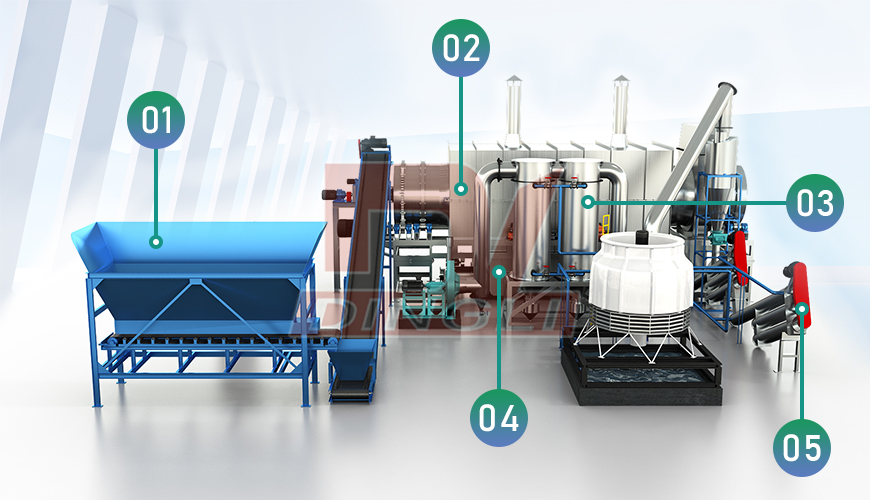

The Structure Composition

Dingli smokeless continuous carbonization furnace is composed of conveyor, high temperature furnace, dust removal, decoking, purification, gas cabinet, power distribution cabinet and other equipment. It is a newly developed continuous carbonization equipment integrating high efficiency, environmental protection and intelligence.

The whole production line can also be equipped with dryers, charcoal powder briquettes or ball briquetting machines, and briquette dryers. The generated carbon blocks can be packaged and sold directly.

Process Flow Chart

Parameters

Model Inner layer diameter(mm) Outer layer diameter(mm) The drum length(m) Carbon capacity(kg/h) Dimension(m)
DLTJ1410/2 800 1400 10 300-500 10.0*2.1*2.8
DLTJ1610/2 1000 1600 10 500-700 10.0*2.3*3.0
DLTJ1810/2 1200 1800 10 700-1000 10.0*2.6*3.2
DLTJ2010/2 1400 2000 10 1100-1300 10.0*2.9*3.9
DLTJ2312/2 1600 2300 12 1500-2000 12.0*3.2*4.2
DLTJ2512/2 1800 2500 12 2200-2500 12.0*3.5*4.5
DLTJ2912/2 2200 2900 12 2700-3000 12.0*3.9*4.9
DLTJ3212/2 2500 3200 12 3300-3800 12.0*4.2*5.3
DLTJ3612/2 2900 3600 12 4000-4500 12.0*4.6*5.8
Waste Materials High Temperature Pyrolysis Plant
Waste Materials High Temperature Pyrolysis Plant
Waste Materials High Temperature Pyrolysis Plant

Project Site of Our Machine


The continuous carbonization furnace for cans is an environmentally friendly equipment that can continuously carbonize cans without interruption. All the flue gas generated during carbonization is recycled. It is currently the equipment with the highest efficiency in can recycling. It can be used for the recycling and treatment of scrap metal, cans, and lithium batteries.

Customize machine solution according to your actual needs.

Applications

It can be used for the recycling and treatment of scrap metal, cans, and lithium batteries. The machine can be used for process e waste material, such as aluminium cans, aluminium capacitors,paint kettles, aluminium profile etc..

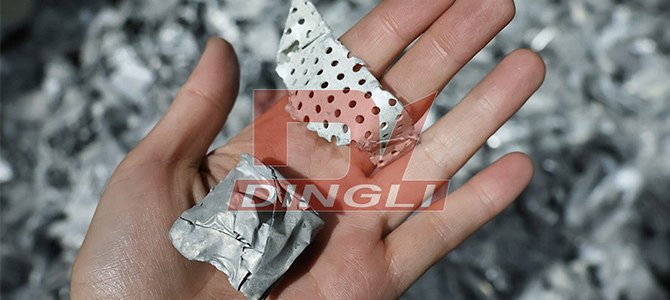

Suitable Materials

The machine can be used for process e waste material, such as aluminium cans, aluminium capacitors,paint kettles, aluminium profile etc.. The surface material after decoating process can increase the purity when smelting, and avoid lost of aluminium. This way can increase the profit.


1. Recycle and reuse waste to increase economic value.

2. Recycle and reuse waste, protect the environment, save energy and reduce emissions.

3. The whole process is convenient and fast, and the effect is remarkable.

4. Simple and convenient operation.
