Dingli Horizontal Biomass Dry Distillation Carbonization Furnace is based on the characteristics of long rod biomass such as logs, wood, sawdust, and jute rods. It adopts horizontal structure, manual charging, cart feeding, and discharging, and advanced hot air dry distillation The carbonization process technology adopts the unique carbonization combustible gas back-burning technology so that the flue gas generated by carbonization can be fully utilized to meet the heat demand of the carbonization furnace itself
The equipment uses sawdust, shavings, wood scraps, branches, rice husks, peanut shells, sugar cane, cotton stalks, corn stalks, wheat straw, rice straw and other crops in the north and south are used as raw materials. Using our new carbonization technology, ideal carbon powder can be obtained, or the carbon residue left when making charcoal briquettes can be obtained. It can be crushed, milled and stirred, and pressed into shape.
It is easy to operate, safe, and environmentally friendly, with high production efficiency, and can save a lot of energy.It is ideal equipment for long-rod biomass carbonization. Combined mode of multiple units, carbonized combustible gas is used in series, saving fuel in carbonization production and improving enterprise efficiency.
| Model |
Capacity(m³)/ Carbonization time |
Length(m) | Width(m) | Internal Diameter(m) | Internal Length(m) | Material |
|---|---|---|---|---|---|---|
| DLWT300 | 1.2/6h | 1.9 | 1.15 | 1.7 | 0.95 | Carbon steel |
| DLWT700 | 3/7h | 1.9 | 1.7 | 1.7 | 1.5 | |
| DLWT1000 | 4.76/7h | 2.9 | 1.7 | 2.7 | 1.5 | |
| DLWT1600 | 7.65/9h | 2.9 | 2.2 | 2.7 | 1.9 | |
| DLWT2000 | 10.48/10h | 3.9 | 2.2 | 3.7 | 1.9 | |
| DLWT3100 | 15.86/12h | 5.8 | 2.2 | 5.6 | 1.9 |

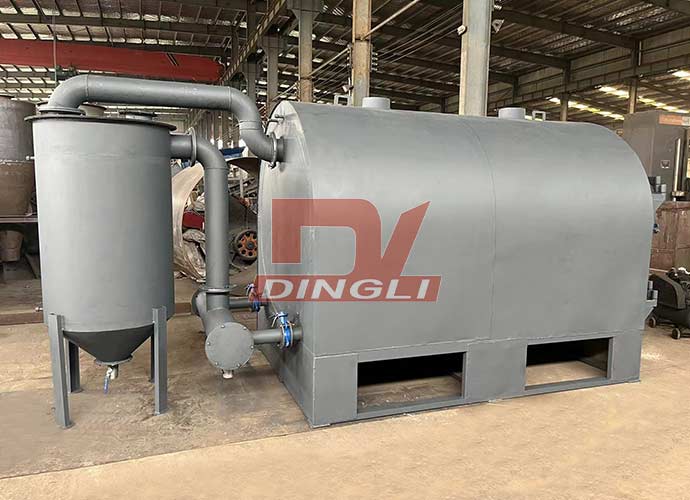

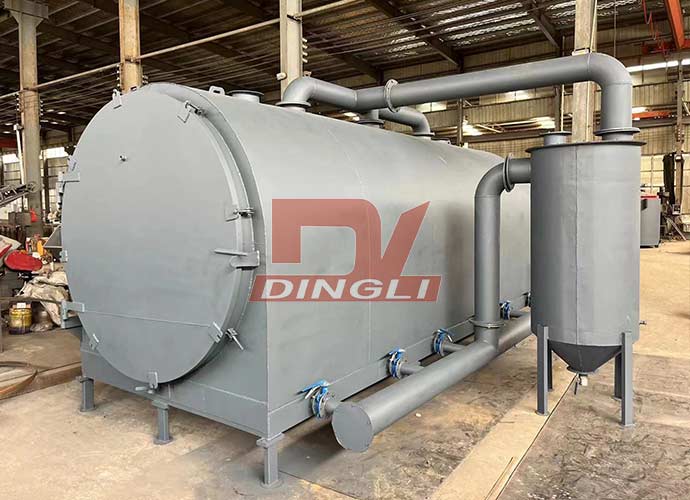

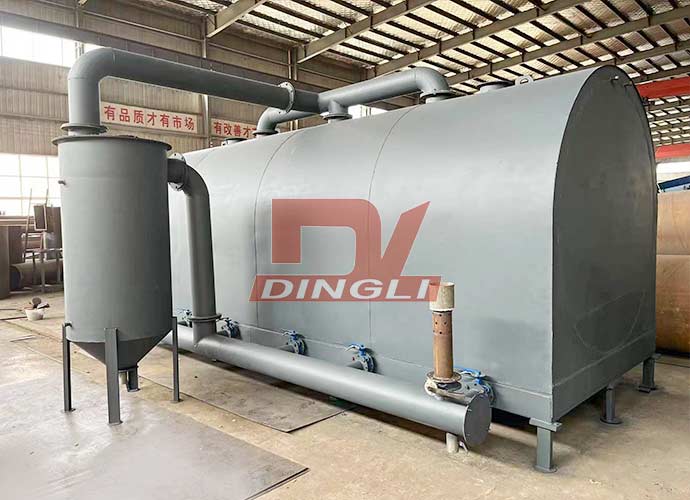

Dingli horizontal biomass dry distillation carbonization furnace is composed of carbonization liner, thermal insulation layer, furnace door, feeding car (small size not configured), combustible gas return combustion pipe, dehumidification buffer tank.& Customize machine solution according to your actual needs.
1. Protect the environment, make full use of crop residues, and turn waste into treasure.
2. Reasonable structure, stable working performance, easy operation.
3. Low water content, high density and incineration resistance.
4. Regular shape, reasonable layout, easy to use: uniform length and size, hollow or solid structure, conducive to combustion and use.
5. The equipment has wide adaptability, can be used to make toner from various raw materials, and press toner rods and toner balls of different shapes according to requirements.
Professional R & D design team, 300+ patent certificates.
The technical team customizes project solutions for customers.
Provide equipment installation and commissioning services.
The professional after-sales team is always at your service.
Dingli machine has been put into use and normal operation in many countries and regions, if you have any questions about the charcoal machine or want to visit the factory, you are welcome to inquire.
