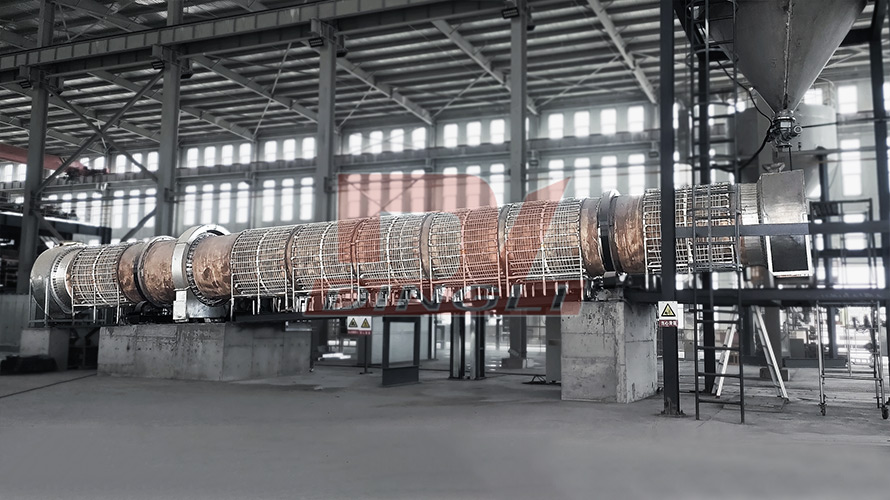

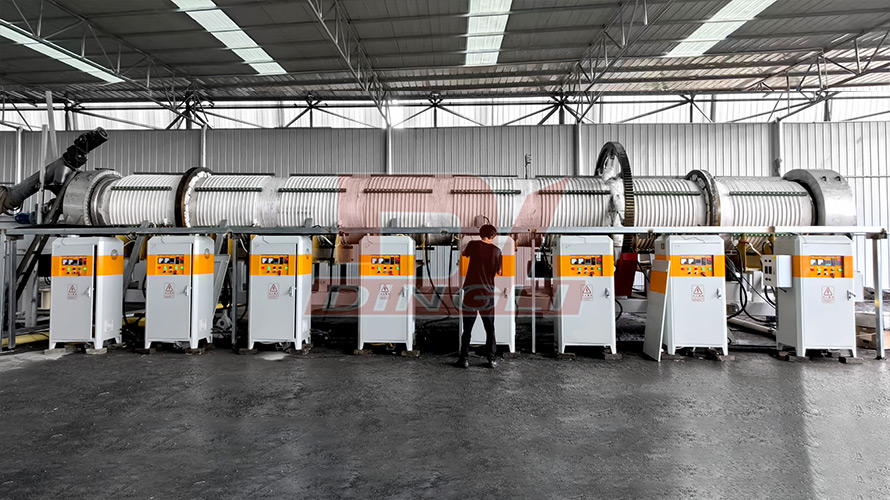

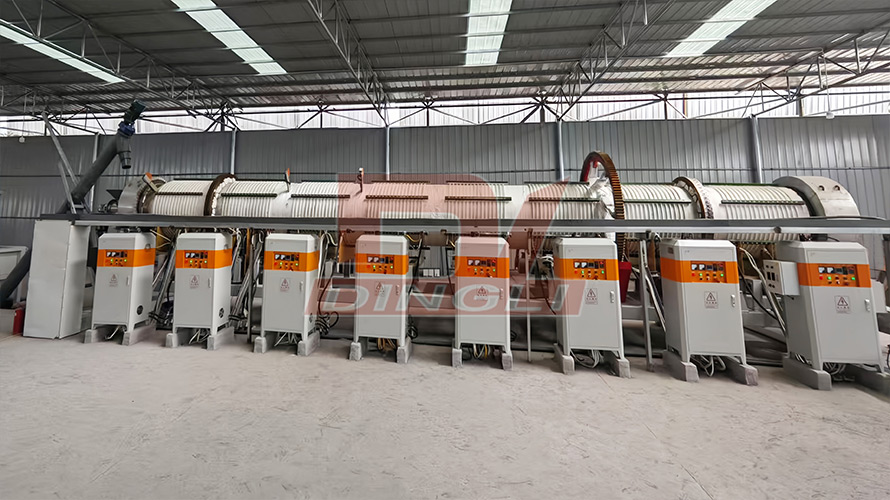

Electromagnetic Calcination Rotary Kiln is a high-end evolution in the field of heat treatment. It is specifically designed for materials requiring chemical reactions, decomposition, or modification at high temperatures (typically 600°C - 1100°C). By replacing traditional flame heating or resistance heating with electromagnetic induction technology, it achieves precision and environmental friendliness in the calcination process.
The electromagnetic calcination rotary kiln utilizes the principle of medium- or high-frequency electromagnetic induction. The kiln body (metal cylinder) generates heat itself under the influence of a magnetic field. The material tumbles within the rotating cylinder, gaining energy through conduction and radiation to complete calcination processes such as dehydration, decarburization, oxidation, reduction, or crystal transformation.
The electromagnetic calcination rotary kiln utilizes the principle of medium- or high-frequency electromagnetic induction. The kiln body (metal cylinder) generates heat itself under the influence of a magnetic field. The material tumbles within the rotating cylinder, gaining energy through conduction and radiation to complete calcination processes such as dehydration, decarburization, oxidation, reduction, or crystal transformation.
| Item | Parameter Range |
|---|---|
| Drum Diameter | 0.6 – 2.5 meters (customizable) |
| Drum Length | 4 – 50 meters (customizable) |
| Drum Material | Heat-resistant carbon steel, 304, 321, 316L, 310S stainless steel |
| Heating Temperature | 200 – 1400℃ (customizable) |
| Electromagnetic Power | 30 – 15000 kW (customizable) |
Core Advantages
Extremely High Temperature Control Precision (±2°C): The calcination reaction is extremely sensitive to temperature. Electromagnetic heating supports stepless power adjustment, resulting in a fast reaction speed and enabling stepped temperature control, significantly improving the chemical stability of the finished product.
High Energy Efficiency: Heat is generated directly at the operating point without passing through a combustion chamber. Energy conversion efficiency can reach over 95%, saving 30%-45% energy compared to traditional calcination processes.
Clean Production (Zero Flue Gas): The absence of a combustion process completely eliminates the generation of smoke, sulfur dioxide, and nitrogen oxides, significantly simplifying environmental impact assessment procedures for the factory.
Extended Kiln Life: Electromagnetic heating is non-contact, resulting in more uniform heating and effectively reducing deformation or burn-through of the kiln body caused by concentrated thermal stress.
High Material Purity: Since no flue gas is required as a carrier, the calcination environment is purer, greatly reducing the risk of external impurities contaminating the product (such as high-purity graphite and lithium battery materials).
Professional R & D design team, 300+ patent certificates.
The technical team customizes project solutions for customers.
Provide equipment installation and commissioning services.
The professional after-sales team is always at your service.
Dingli carbonization/pyrolysis machines have been successfully deployed and are operating reliably across numerous countries and regions. In addition to high-performance equipment, our solutions enable customers to earn Carbon Credits through sustainable biochar production and biomass utilization. Should you have any questions about the carbonization/pyrolysis machine or wish to arrange a factory visit, we warmly welcome your inquiry.
