The equipment of the nut shell carbonization furnace production line includes bark gasifier, smoke processor, combustible gas purifier, combustible gas condenser and induced draft fan and other components. Nut shell carbonization machine is a new type of high-efficiency, energy-saving and environment-friendly carbonization equipment. This equipment is suitable for carbonization of fine powders such as sawdust, rice husk, bark, sludge, garbage, etc. It is not easy to be used for carbonization of larger materials. The advanced carbonization technology means that the whole process does not produce harmful gases and does not pollute the environment.

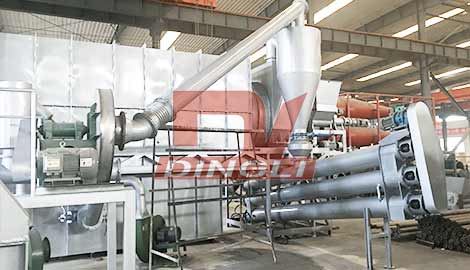

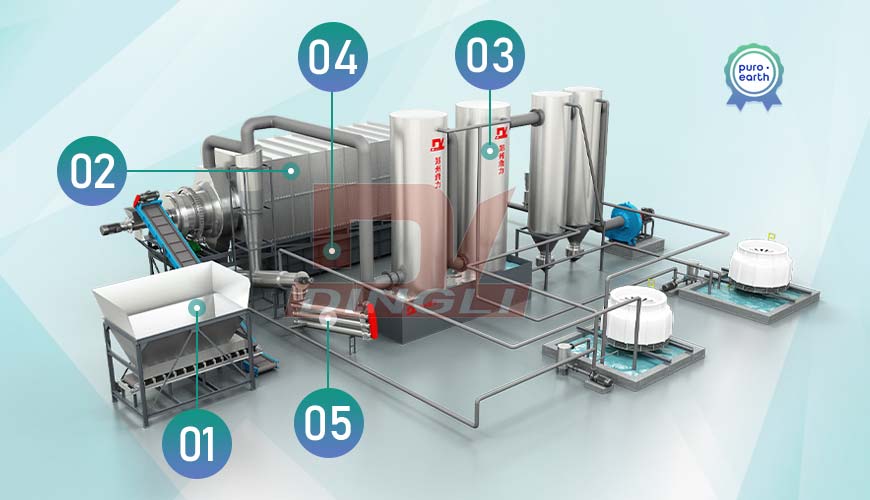

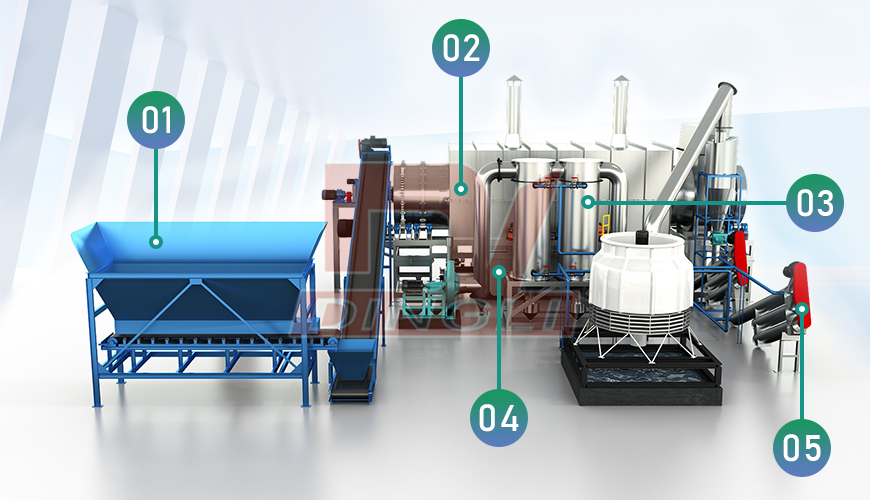

Dingli smokeless continuous carbonization furnace is composed of conveyor, high temperature furnace, dust removal, decoking, purification, gas cabinet, power distribution cabinet and other equipment. It is a newly developed continuous carbonization equipment integrating high efficiency, environmental protection and intelligence.
The whole production line can also be equipped with dryers, charcoal powder briquettes or ball briquetting machines, and briquette dryers. The generated carbon blocks can be packaged and sold directly.
Model | Inner layer diameter(mm) | Outer layer diameter(mm) | The drum length(m) | Carbon capacity(kg/h) | Dimension(m) |
DLTJ1410/2 | 800 | 1400 | 10 | 300-500 | 10.0*2.1*2.8 |
DLTJ1610/2 | 1000 | 1600 | 10 | 500-700 | 10.0*2.3*3.0 |
DLTJ1810/2 | 1200 | 1800 | 10 | 700-1000 | 10.0*2.6*3.2 |
DLTJ2010/2 | 1400 | 2000 | 10 | 1100-1300 | 10.0*2.9*3.9 |
DLTJ2312/2 | 1600 | 2300 | 12 | 1500-2000 | 12.0*3.2*4.2 |
DLTJ2512/2 | 1800 | 2500 | 12 | 2200-2500 | 12.0*3.5*4.5 |
DLTJ2912/2 | 2200 | 2900 | 12 | 2700-3000 | 12.0*3.9*4.9 |
DLTJ3212/2 | 2500 | 3200 | 12 | 3300-3800 | 12.0*4.2*5.3 |
DLTJ3612/2 | 2900 | 3600 | 12 | 4000-4500 | 12.0*4.6*5.8 |

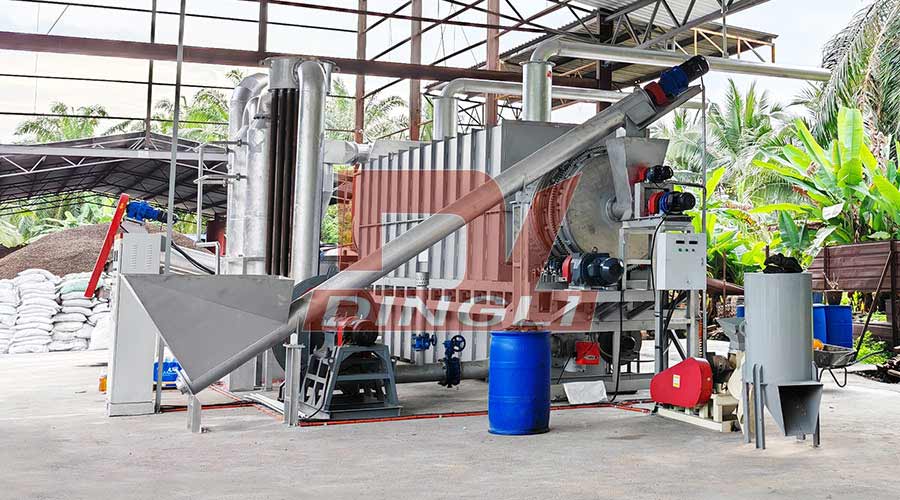

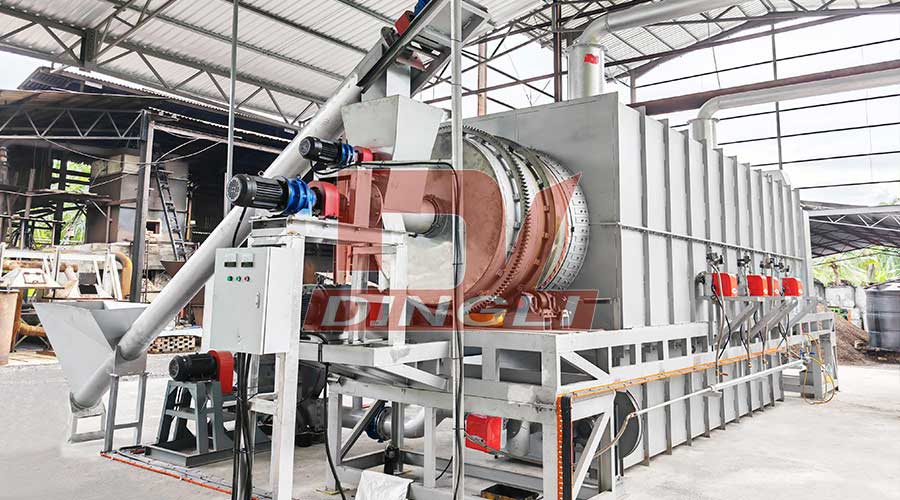

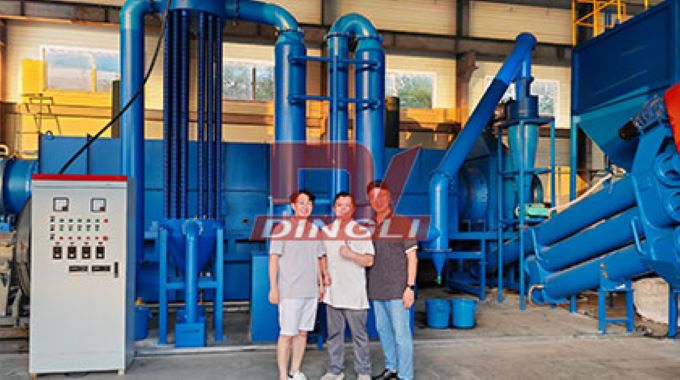

In the site, there is a complete wood chip charcoal making system, including feeding system, crushing system, drying system, wood carbonization System, Discharging System, Final charcoal powder.

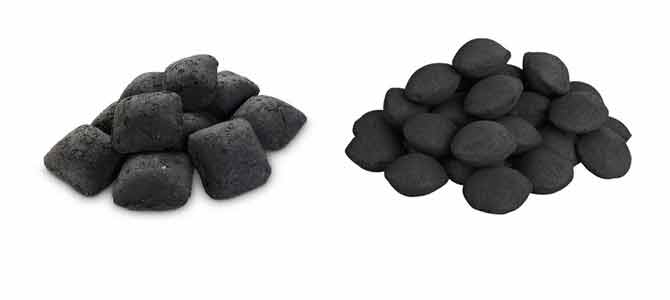

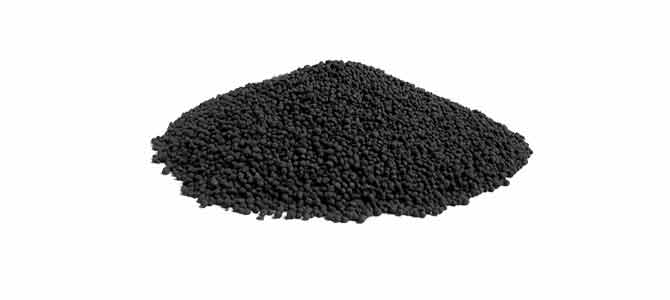

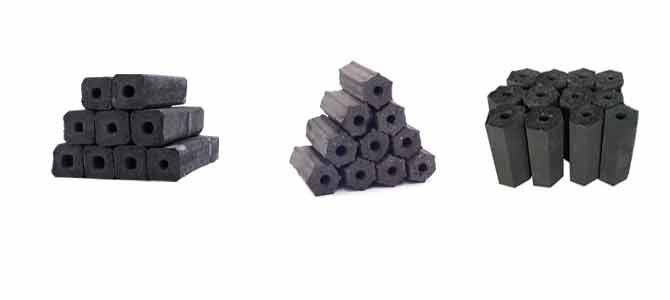

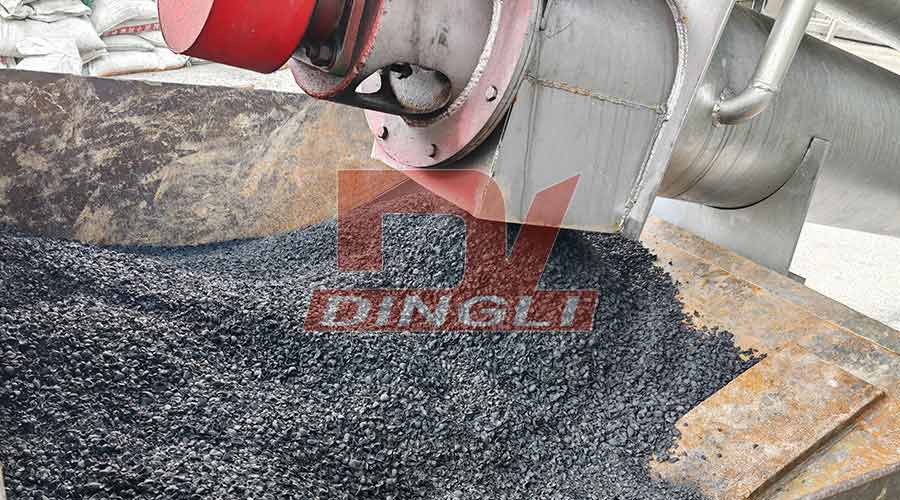

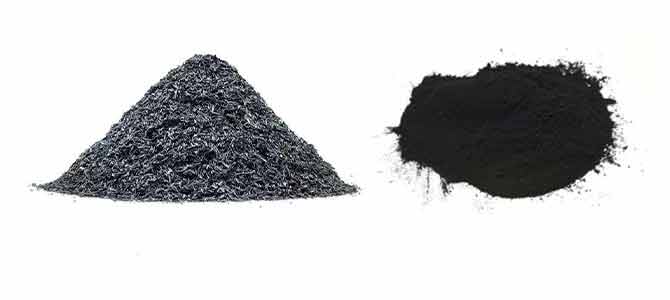

Customize machine solution according to your actual needs.Carbonization of biomass materials by charcoal machine, carbon content is greatly improved, and the combustion effect is good. After cooling the carbon powder, it can be equipped with a molding device to process carbon rods, carbon blocks, etc., and can also carry out deep processing of activated carbon.
Carbonization furnace is suitable for carbonization of various forestry and agricultural biomass. Such as sawdust, wood chips, bagasse, coffee grounds, bamboo, coconut shell, cherry shell, date, walnut shell, apricot shell, peanut shell, rice husk, cotton stalk, straw, etc.(Note: Some raw materials need to be crushed.)
1. Strong material adaptability. Biomass with a moisture content of less than 20% and a particle size of less than 30 mm can be carbonized;
2. The quality of carbon products is good, and the carbonization rate is high. Carbon products can be used not only as fuel carbon, but also as raw materials for agricultural carbon, metallurgical carbon and activated carbon;
3. Strong carbonization depth control ability. The residual volatile matter of charcoal products is 10-25%, which can be controlled on demand;
4. The equipment is safe and environmentally friendly, stable in operation and long in service life. Choose a large number of new materials and new processes, adopt patented technology design, precision production, after a lot of practical tests, every detail is perfect, to ensure the quality of each set of equipment.

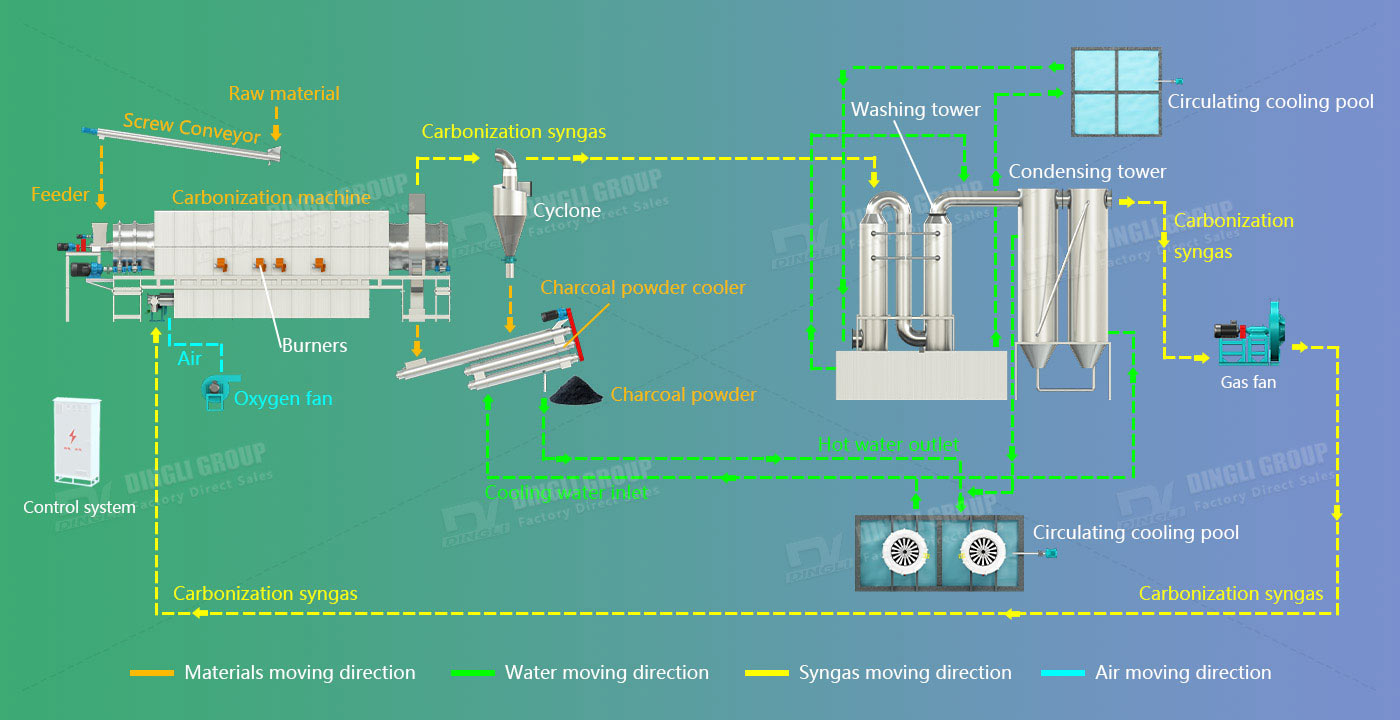

Machine purifies carbonized flue gas into combustible gas. It can continuous product 24 hours.
Self-produced flue gas can be used for circulating combustion, saving a lot of fuel costs.
With flue gas purification system, the production environment has no smoke emissions.
We ensure that every part of the machine has high safety, We have many operational safety designs.
Professional R & D design team, 300+ patent certificates.
The technical team customizes project solutions for customers.
Provide equipment installation and commissioning services.
The professional after-sales team is always at your service.
